M2 10" Color Optix™ 2-Way Horn Loaded Speaker M2-10H

Front Beauty Shot of Speaker with Sport Grille and Stainless Grille
Front View of Speaker with Sport Grille
Front Level View of Speaker with Stainless Steel Grille
Profile View of Speaker with Sport Grille
Eye Level View of Speaker with Sport Grille
Three Quarter Beauty Shot of Products Included in Kit

M2 10" Color Optix™ 2-Way Horn Loaded Speaker M2-10H

The next evolution of on-water audio, the M2 10-inch wake tower speakers create an unmatched audio experience, with class-leading output, complete on-water lighting control and grille customization.

Features & Benefits:

Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (Sold Separately.)

Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your speakers stand the test of time.

Infinite Customization: Multiple grille options are designed to dial in your personalized-on water experience.

True Marine Ecosystem: Dual Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.

Click to watch video M2-10H Lifestyle

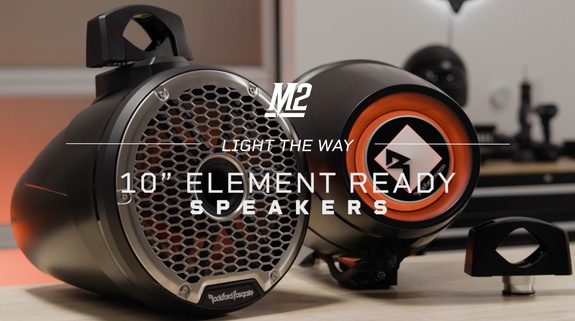

Click to watch video M2-10H Product Overview

Read More
0 Reviews
Overview

CLASS LEADING OUTPUT

The M2WL-10H and M2WL-10HB models are marine grade 10" full-range horn-loaded drivers engineered specifically to be BIG and LOUD! We're not kidding ... our very own product development brief states: "Rockford Fosgate developed the 10-inch horn loaded drivers to be the loudest marine driver on the market."

The frequency response is uniquely tuned for "open-air" environments, so you hear the detail in your music the way it was intended to be heard. This makes the 10-inch horn loaded drivers perfect for use in salt or fresh watercraft as well as some UTV installations.

Due to the long-range projection capability of the horn-loaded design, these drivers can be used where the listener will be at a distance from the speaker. Includes both Sport and Stainless Steel grille inserts.

FEATURES AT A GLANCE

  • Integrated 1” (25 mm) high efficiency horn tweeter
  • 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
  • Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
  • Proprietary Dual Function Input Terminals
  • Gold plated marine grade brass terminals provide a corrosion resistant connection
  • Integrated Deutsch RGB and Speaker receptacles
  • 100% UV Stable Centrex plastic grill
  • Moisture, tear and fatigue resistant Aramid fiber spider
  • Vented motor design with water-repelling nano coated mesh screen
  • Fully insulated flex lead wire stitched under spider
  • UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Co-molded surround and cone body
  • 12dB/Octave Crossover network
  • Fully sealed integrated concealed crossover (ICC) network
  • Metallized Polyester Film Capacitors
  • Optically clear UV stable Encapsulated LED PCB
  • Multiplexed RGB Input
  • Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
  • 2-Year Warranty
Videos
Technologies
CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Learn more
Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Learn more
Vast + Co-Molded Surround

The vertically attached surround is co-molded to the cone to provide an incredibly strong bond at ...

Learn more
ICC Crossover

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier ...

Learn more
CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 ...

Learn more
Specifications
Speaker Type
2-Way
Tweeter Mounting Depth
N/A
Midrange Size (Nominal Diameter)
10"
Power Handling (RMS)
300 Watts RMS
1200 Watts PEAK
Nominal Impedance (Ohms)
4-Ohm
Midrange Mounting Depth
4.66 in (118.4 mm)
Tweeter Size
1” (25.4 mm) High Efficiency Horn Tweeter
Crossover
12dB/Octave
Sensitivity (dB @ 1w/1m)
94
Sensitivity (dB @ 2.83V)
97
Frequency Response
20 Hz - 25 kHz
In The Box
2) 4-pin Deutsch harness (1130-74637-01)
2) Stainless grills
2) White sport grills
2) Driver bits
1) Drill bit
12) Mounting screws
Mounting Hardware
Yes
Grille/Trim Ring Included
Yes
Shipping Weight
10.2 Lbs. (4.6 Kg.)
