Harley-Davidson® Audio Powered by Rockford Fosgate®

Legendary Sound

Harley-Davidson® Audio powered by Rockford Fosgate® is designed to be the new standard of motorcycle audio performance and customization. Harley-Davidson and Rockford Fosgate have worked together to create the highest performing, most advanced audio system riders have ever experienced. This is truly Legendary Sound from two legendary brands.

Black Harley-Davidson® LFTRXSE (CVO) profile with rider wearing helmet

Stage-1 vs Stage-2

The Stage-1 and Stage-2 audio systems are both packed with class leading technology and output. Watch to learn about which audio system is right for you.

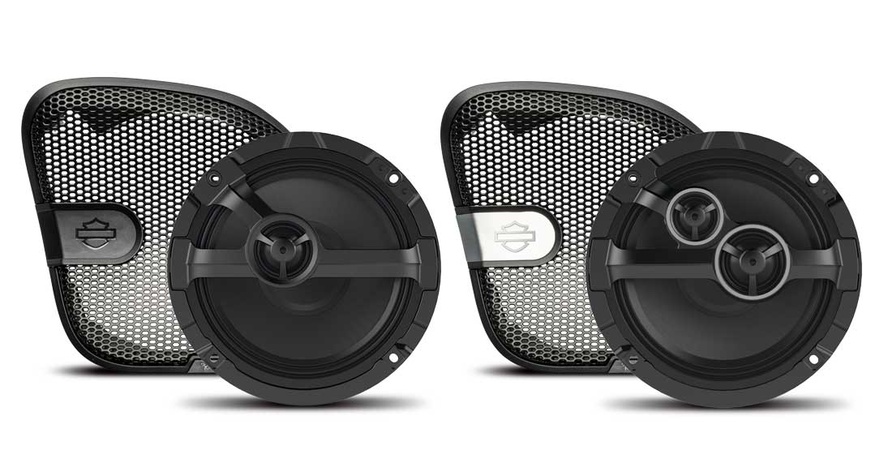

Harley-Davidson® Audio Powered by Rockford Fosgate - Stage 1 and Stage 2 6.5-inch speakers

6.5" Front Upper Speakers

Precisely Accurate Audio

Amplify your audio experience with Harley-Davidson® Audio powered by Rockford Fosgate® speakers. These high-performance speakers feature a durable injection molded woofer and a separate bridge-mounted tweeter design. Stage-2 features a 3-way design and rated to handle up to 125 watts of power. Stage-1 features a 2-way design and rated to handle up to 75 watts.

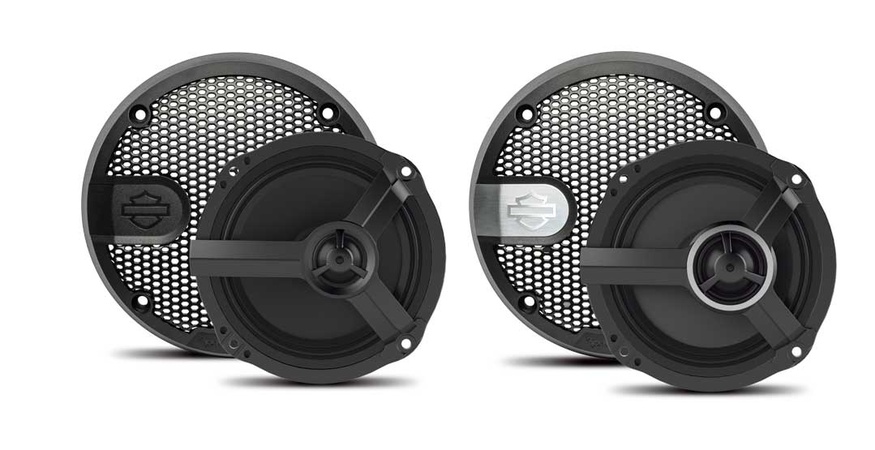

Harley-Davidson® Audio Powered by Rockford Fosgate - Stage 1 and Stage 2 4.75-inch speakers

4.75" or 6.5" Lower Speakers

Air cooled are the 6.5", Twin cooled are 4.75"

These high-performance lower speakers feature a durable injection molded woofer and a separate bridge-mounted tweeter. Stage-2 handles up to 125 watts of power and Stage-1 handles up to 75 watts of power. 4.75” speakers fit twin cooled Harley-Davidson® models, while 6.5” are designed for air cooled models.

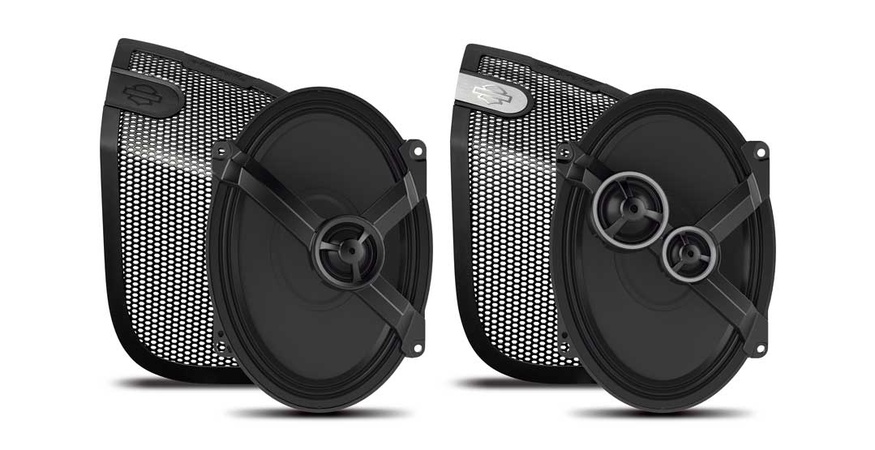

Harley-Davidson® Audio Powered by Rockford Fosgate - Stage 1 and Stage 2 6x9-inch speakers

5x7" Saddlebag Speakers

Rider Surround Sound

Turn your motorcycle into a concert hall. These speakers mounted in saddlebag lids surround you and the passenger with incredible output and are sure to increase the over-all audio experience. Stage-1 features a 2-way design and rated to handle up to 75 watts of power. Stage-2 features a 3-way design and rated to handle up to 125 watts of power.

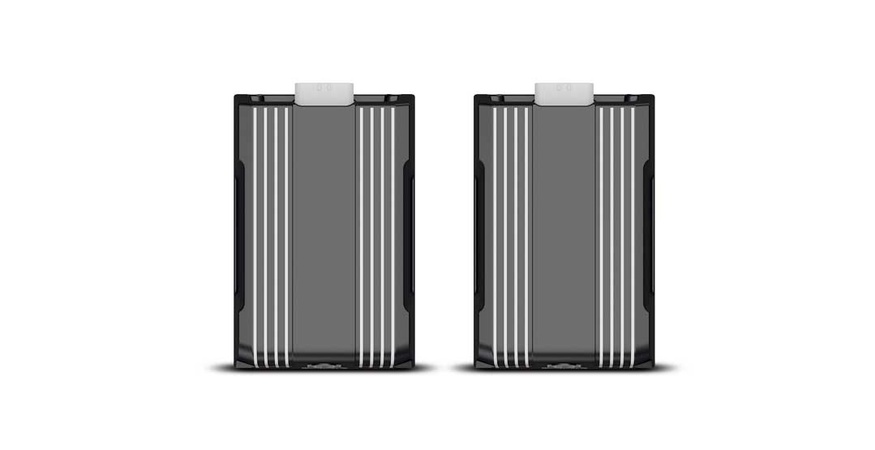

Harley-Davidson® Audio Powered by Rockford Fosgate - Amplifiers

Amplifier

Smart Powerful Performance

Powerful, intelligent amplifier technology engineered to perform in the demanding motorcycle environment. The 400 watt 4-channel primary amplifier for any Harley-Davidson® Audio powered by Rockford Fosgate® two-speaker or four-speaker system. A secondary amplifier is required for any six-speaker or eight-speaker system.

Rockford Fosgate R-Tune technology icon

R-Tune™ Technology

Equalization is specific to the motorcycle environment, designed from the ground up to be stronger and louder, to overcome road rumble and wind noise. Left and right speakers are designed to project sound directly at the rider for an enhanced audio experience.

Rockford Fosgate M-DEQ technology icon

M-DEQ™ Technology

(Motorcycle Dynamic EQ) Our smart amplifier adaptively changes the EQ points in real time, meaning the tune changes to ensure incredible sound quality no matter the motorcycle speed or riding conditions.

Rockford Fosgate BME technology icon

BME Technology

(Bass Management Enhancement) Designed to produce more bass, no matter the volume. The active amplifier DSP continually adapts to speed and road noise and maximizes the speakers’ bass output to create powerful bass at any volume or speed.

Harley-Davidson® Powered by Rockford Fosgate App technology icon

The Harley-Davidson powered by Rockford Fosgate® App

Install and fine-tune the system yourself. Smart-Install makes initial installation and upgrades incredibly fast and easy. The Harley-Davidson powered by Rockford Fosgate® App even adapts for each new speaker added to the audio system and tailors the audio experience automatically. Requires Bluetooth® module.

IDHS™ (Inductive Damping Heat Sink)

The speaker fins push heat away from the voice coils to reduce speaker temperature and distortion to produce the clearest-possible audio.

Bridge Mounted Design

The offset Midrange and Tweeter speaker design eliminates acoustic reflection and maximizes audio output. The specific left and right Midrange and Tweeters are also aligned for optimal riding position, making sure the audio is always directed in the proper location, giving the best on-road audio experience.

Full Range Class-D Technology

More power and less electrical fatigue. These high-efficiency amplifiers produce class leading power and don’t over-draw on the motorcycle electrical system.

ICC+

The Integrated Concealed Crossover boasts a hyper-efficient design and produces the clarity and output usually only found in traditional component speaker set-ups, plus the design allows for a quicker install.

Vibration-Tested

Tested and then re-tested to ensure supreme durability. These speakers have endured extreme conditions and then vibration validation all to make sure they stand the test of time.

Specifications

Stage-2 Upper/Lower Component Speaker:

  • 6.5"

— Motor:

  • Neodymium

— Spider:

  • Nomex™

— Tweeter Size:

  • 20 mm

— Midrange Size:

  • 30 mm

— Power Handling:

  • 125W RMS

— Impedance:

— SPL:

  • 107 dB

— Response:

  • 44 Hz - 43 kHz

— Crossover:

  • ICC 12dB High-Pass

Stage-2 Lower Component Speaker:

  • 4.75"

— Motor:

  • Neodymium

— Spider:

  • Nomex™

— Tweeter:

  • 25 mm

— Power Handling:

  • 75W RMS

— Impedance:

— SPL:

  • 101 dB

— Response:

  • 52 Hz - 43 kHz

— Crossover:

  • ICC 6dB Low-Pass

Stage-2 Saddlebag Component Speaker:

  • 5"x7"

— Spider:

  • Nomex™

— Motor:

  • Neodymium

— Tweeter Size:

  • 20 mm

— Power Handling:

  • 125W RMS

— Midrange:

  • 30 mm

— Impedance:

— SPL:

  • 107 dB

— Response:

  • 42 Hz - 26 kHz

Primary Amplifier:

  • 400W (100x4 @ 2Ω) + DSP

— Frequency Response:

  • 20 Hz - 20 kHz

— Total Harmonic Dist.:

  • < 1.0%

— Crossover:

  • ICC 12dB High-Pass

— Topology:

  • Full-Range Class-D

— Efficiency (average):

  • > 75%

— Integrated DSP:

  • 300 MIPS Processing

— Data Bus:

  • 32-bit w/ Double Precision

— Digital-to-Analog:

  • 48kHz / 32-bit DACs

— Analog-to-Digital:

  • 48kHz / 24-bit ADCs

Secondary Amplifier:

  • 400W (100x4 @ 2Ω)

— Cooling:

  • Intelligent Thermal Management

— Heatsink:

  • Focused Mass Die-Cast Aluminum

— Max Current Draw:

  • < 45A

— Operating Voltage:

  • 9 - 16 VDC
