Road King Audio Solution

Harley-Davidson® Audio Powered by Rockford Fosgate®

Meet the new Road King™ audio solution from Harley-Davidson® and Rockford Fosgate®. These systems were designed rider centric and specifically engineered for 2014 and later Road King models. With next level sound quality, Bluetooth™ connectivity, minimal installation time, and all while maintaining that legendary look of your King.

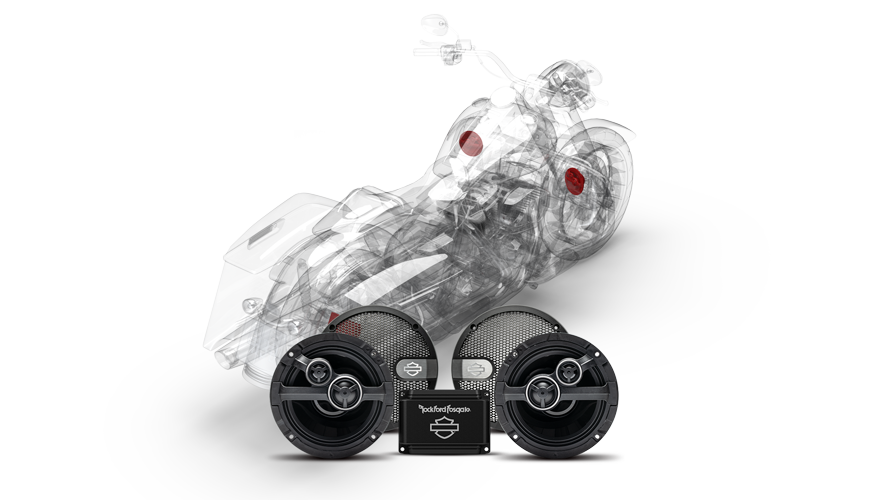

System Overview

The Harley-Davidson® Audio Powered by Rockford Fosgate® Road King™ audio system features next level sound quality, Bluetooth™ amplifier connectivity and minimal installation time. Watch to learn more.

Amplifier

Brains with Bluetooth™

The 250-watt amplifier features Bluetooth connectivity for easy device pairing, but what really sets it apart is its Harley-Davidson™ Audio mobile App integration. It uses your GPS to monitor your speed and based on that, the Harley-Davidson App adjusts the volume in real time. This happens automatically in the background so you can pay attention to the road ahead.

6.5” Stage 2 Front Lowers

Engineered Rider Centric

Amplify your audio experience with Harley-Davidson® Audio powered by Rockford Fosgate® Stage 2 speakers. These high-performance speakers feature a durable injection molded woofer and a separate bridge-mounted tweeter design. We also engineered these 125-watt speakers specifically for left and right applications, so they are always pointed directly at you while you ride, which makes sure the audio is hitting right where it needs to.

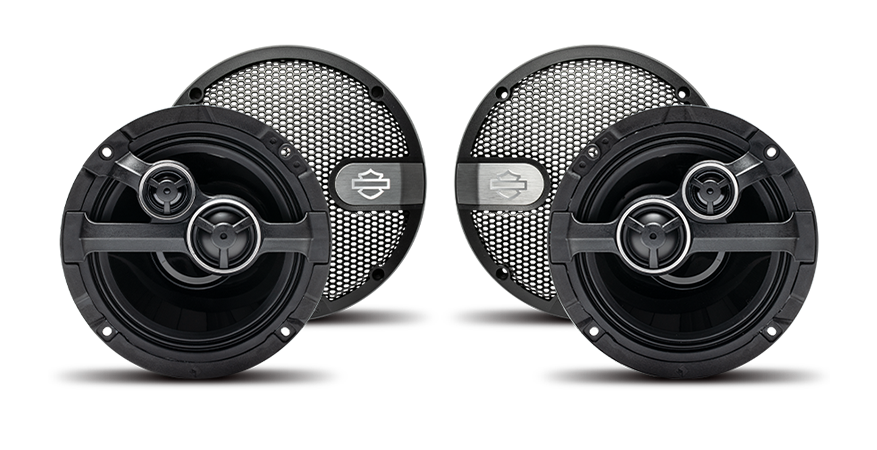

6.5” Stage 2 Tour-Pak® Luggage Speakers

Engineered Rider Centric

Amplify your audio experience with Harley-Davidson® Audio powered by Rockford Fosgate® Stage 2 speakers. These high-performance speakers feature a durable injection molded woofer and a separate bridge-mounted tweeter design. We also engineered these 125-watt speakers specifically for left and right applications, so they are always pointed directly at you while you ride, which makes sure the audio is hitting right where it needs to.

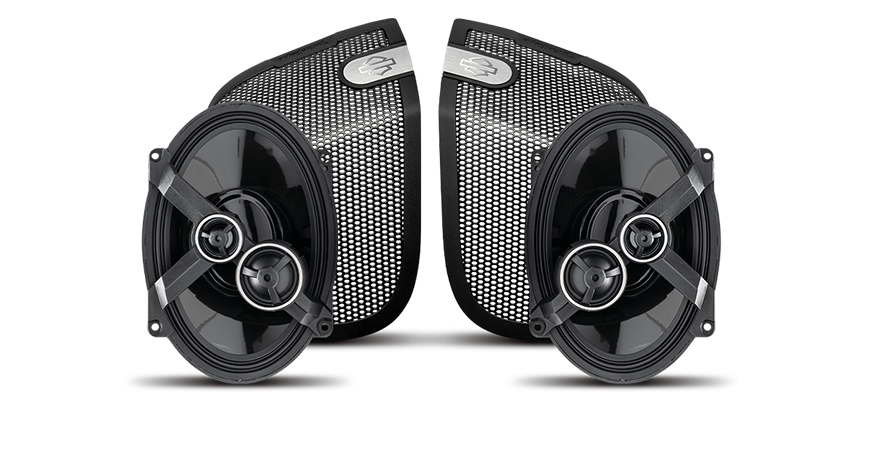

5X7” Stage 2 Saddlebag Speakers

Engineered Rider Centric

Amplify your audio experience with Harley-Davidson® Audio powered by Rockford Fosgate® Stage 2 speakers. These high-performance speakers feature a durable injection molded woofer and a separate bridge-mounted tweeter design. We also engineered these 125-watt speakers specifically for left and right applications, so they are always pointed directly at you while you ride, which makes sure the audio is hitting right where it needs to.

Smart Speed Control

All brains with Bluetooth™. The amplifier features Bluetooth connectivity for easy device pairing, but what really sets it apart is its intelligence. It uses your GPS speed to adjust the amplifier volume in real time. This happens automatically in the background so you can pay attention to the road ahead. This feature is also adjustable on the Harley-Davidson Audio mobile app so that your personal preferences can be custom tailored to your riding style.

R-Tune®

Every measure was taken to put the rider first. Harley-Davidson and Rockford Fosgate specifically designed and engineered individual left and right speakers, measured rider positioning, and created a first of its kind tune that enhances the audio experience like never before. This all-inclusive system is purpose built from the ground up, to be stronger, louder and battle road rumble and wind noise.

H-D™ APP

With the Harley-Davidson™ Powered by Rockford Fosgate App, it’s now super easy to tune and tweak your audio system or set-up new speakers yourself and everything can be done right from your smart phone. The Smart-Install set up gives you a visual overview of your bike and audio system.

IDHS™ (INDUCTIVE DAMPING HEAT SINK)

The speaker fins push heat away from the voice coils to reduce speaker temperature and distortion to produce the clearest-possible audio.

BRIDGE MOUNTED DESIGN

The offset Midrange and Tweeter speaker design eliminates acoustic reflection and maximizes audio output. The specific left and right Midrange and Tweeters are also aligned for optimal riding position, making sure the audio is always directed in the proper location, giving the best on-road audio experience.

ICC+

The Integrated Concealed Crossover boasts a hyper-efficient design and produces the clarity and output usually only found in traditional component speaker set-up.

VIBRATION TESTED

Tested and then re-tested to ensure supreme durability. These speakers have endured extreme conditions and then vibration validation all to make sure they stand the test of time.

Specifications

AMPLIFIER:

  •

— POWER OUTPUT:

  • 125 W x 2 @ 2 Ohm

— CTA-2006 COMPLIANT:

  • YES

— FREQUENCY RESPONSE:

  • 20 Hz - 20 kHz

— THD+N:

  • < 1% @ 14.4 VDC

— AVG. CURRENT DRAW:

  • 12.5 AMPS

— Cooling:

  • Die-Cast Aluminum

— Operating Voltage:

  • 9 - 16 VDC

— CIRCUIT TOPOLOGY:

  • Full-Range Class-D

— INSTALL KIT:

  • H-D P/N: 76001113

SADDLEBAG:

  •

— SPEAKER SIZE:

  • 5x7 INCH

— Spider:

  • Nomex™

— Motor:

  • Neodymium

— Tweeter Size:

  • 20 mm

— Midrange:

  • 30 mm

— Power Handling:

  • 125W RMS

— Impedance:

— SPL:

  • 107 dB

— Response:

  • 42 Hz - 26 kHz

— INSTALL KIT:

  • (SEE H-D DEALER)

FRONT LOWERS:

  •

— SPEAKER SIZE:

  • 6.5 INCH

— Spider:

  • Nomex™

— Motor:

  • Neodymium

— Tweeter Size:

  • 20 mm

— Midrange Size:

  • 30 mm

— Power Handling:

  • 125W RMS

— Impedance:

— SPL:

  • 107 dB

— Response:

  • 44 Hz - 43 kHz

— Crossover:

  • ICC 12dB High-Pass

— INSTALL KIT:

  • H-D P/N: 76000978

TOURPAK:

  •

— SPEAKER SIZE:

  • 6.5 INCH

— Motor:

  • Neodymium

— Spider:

  • Nomex™

— Tweeter Size:

  • 20 mm

— Midrange Size:

  • 30 mm

— Power Handling:

  • 125W RMS

— Impedance:

— SPL:

  • 107 dB

— Response:

  • 44 Hz - 43 kHz

— Crossover:

  • ICC 12dB High-Pass

— INSTALL KIT:

  • H-D P/N: 76000977

MOBILE APP:

  •

— iOS App:

  • app store button

— Android App:

  • play store button

Installation Video:

  • 2 Speaker Setup & Amplifier Install
