Stereo Kit for select YXZ® models YXZ-STAGE1

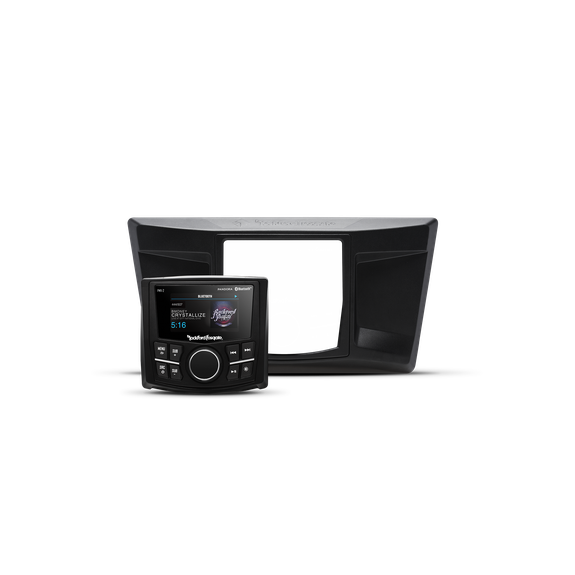

Front View of Stage 1 Kit

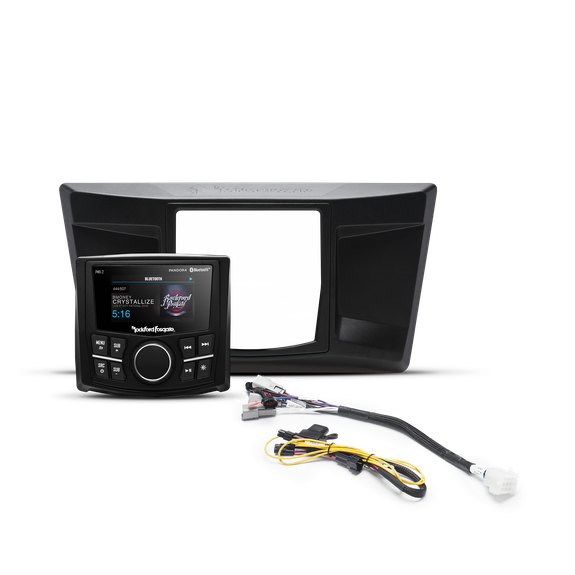

Three Quarter Beauty Shot of Products Included in Kit

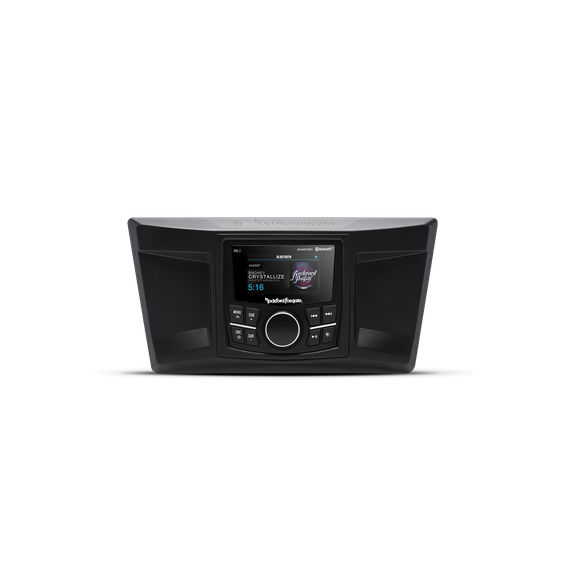

Stage 1 Kit Installation View
Front View of PMX-2 Installed on Dash Mount
Front View of Stage 1 Kit
Three Quarter Beauty Shot of Products Included in Kit
Stage 1 Kit Installation View
Front View of PMX-2 Installed on Dash Mount
Front View of Stage 1 Kit
Three Quarter Beauty Shot of Products Included in Kit
Stage 1 Kit Installation View
Front View of PMX-2 Installed on Dash Mount

Stereo Kit for select YXZ® models YXZ-STAGE1

Our Stage 1 kit lets you easily add the PMX-2 digital media receiver to your YXZ using the included dash mounting kit. Coming prepackaged with all necessary hardware and pre-terminated wire harness, this kit allows you to quickly upgrade your YXZ with minimal time and tools required.

Click to watch video YXZ-STAGE1 Installation

Read More
0 Reviews
$459.99
Checking product inventory...
–+
–+

Notify Me When Back In Stock:

Thanks! You're on the list!

Stage1

Stage2

Stage3

Stage4
Overview Technologies Compatibility Support
Overview

Estimated Installation Time: 1/2 HOUR

FEATURES AT A GLANCE

  • Direct connect wiring harnesses for YXZ models
  • Element Ready™ to withstand the harsh outdoor environment
  • PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
  • RFYXZ-PMXDK: Installation Kit for Dash
  • *Antenna not included
Technologies
IPX6 Water Intrusion Rated

Water projected in powerful jets from any direction shall have no harmful effects.

Learn more
Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Learn more
ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

Learn more
Specifications
Compatibility
YAMAHA YXZ (2-SEAT)
MODEL 2021 YXZ1000R Dash 2016 2021 YXZ1000R Dash 2017 2021 YXZ1000R Dash 2018 2021 YXZ1000R Dash 2019 2021 YXZ1000R Dash 2020 2021 YXZ1000R Dash 2021 2021 YXZ1000R Dash 2022 2021 YXZ1000R Dash 2023 2024 YXZ1000R SS XT-R Dash 2024 2024 YXZ1000R SS XT-R Dash 2025
YXZ1000R ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✕ PW ✅
YXZ1000R SE ✅ ✅ ✅ ✅ — — — — — —
YXZ1000R SS — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✕ AS ✕ AS
YXZ1000R SS SE — ✅ ✅ ✅ ✅ ✅ — — — —
YXZ1000R SS XT-R — — — — ✅ ✅ ✅ ✅ ✕ AS,PW ✕ AS,PW

[] Brackets - Nomenclature used on early models and later inherited.
AS Yamaha Auto-Shift Technology - In dash controller introduced in 2024 impedes installation of PMX dash kit.
PW Power Winch - switch system obstructs PMX dash kit from being installed.

LEGEND

YES

YES Compatible! Model IS compatible with kit

NO

NOT Compatible! Model NOT compatible with kit

NOT AVAILABLE

Model not produced Model not produced this year
FITMENT

YES

2-Seat Models Yamaha YXZ

NO

Yamaha Wolverine Yamaha Wolverine

NO

Yamaha Viking Yamaha Viking

NO

Yamaha Auto-Shift Yamaha Auto-Shift AS
(impedes PMX radio installation)

NO

Power Winch Power Winch PW
(switches obstruct dash kit)
Support

Knowledge Base Articles


Show all Knowledge Base topics

Ask Our Experts

Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.


Return Authorization Process



Diagnose First

Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our Knowledge Base for troubleshooting assistance.



Contact Customer Support

Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:

  • First and Last Name with complete Shipping Address
  • Product Name (T0D415)
  • Serial Number (12 or 13 digit number)
  • Failure Diagnosis (no output, no power LED, etc.)
  • Scanned copy of Original Receipt emailed to [email protected] (dealer name, purchase date, and item purchased must be legible)
  • Credit/Debit Card (if paying for out-of-warranty claims)
  • No money orders or checks.


Shipping Instructions

When shipping your product, your package MUST have the following information:

  • RA# Printed Outside of Box (as large as possible)
  • Copy of Original Receipt


Shipping Address

Ship your product (UPS or FedEx preferred) to the following:


Rockford/ AJR International
300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
