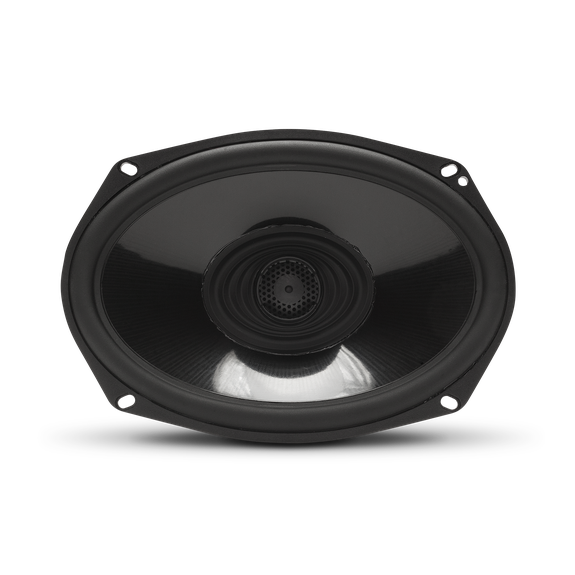

Front View of Lid Speaker
Eye Level View of Lid Speaker
Three Quarter Beauty Shot of Lid Speakers
Front View of Lid Speaker
Eye Level View of Lid Speaker
Three Quarter Beauty Shot of Lid Speakers
Front View of Lid Speaker
Eye Level View of Lid Speaker

Power Motorcycle 6"x9" Full Range Bag Lid Speakers TMS69

The TMS69 full range coaxial speaker is designed for use in bag lid applications for motorcycles. Designed lightweight so it doesn't weigh down your bag-lid, it features a very powerful Neodymium motor structure for a fraction of the size and weight of traditional ceramic ferrite magnets. The driver uses a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly.

Read More
2 Reviews
Find Dealer
Overview Technologies Specifications Support
Overview

Do you enjoy hitting the road on your motorcycle but are tired of not enjoying your music because you can't hear it when riding? The Rockford Fosgate TMS series of motorcycle speakers solve that problem. The TMS69 is a full range coaxial speaker designed to fit bag lid speaker locations made for 6x9” size speakers on Motorcycles.

It features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly.

FEATURES AT A GLANCE

  • Element Ready design that is weather and water resistant
  • Poly‐Cotton Spider
  • Carbon Fiber Reinforced Polypropylene Cone
  • Santoprene VAST Surround
  • Co‐Molded Cone and Surround
  • Santoprene Front Isolation Spider
  • Ultra‐Efficient Neodymium Dual Magnet Motor Structure
  • Ultra‐High Temperature Glass Reinforced Polymer Frame
  • High Power 35mm Voice Coil
  • Integrated Spade Terminals
  • Integrated 6dB Crossover with High Power Polyester Capacitor
  • Ultra-Efficient 25mm Proprietary Film Dome Tweeter
  • Neodymium Tweeter with Integrated Phase Plug and ASA Grill
  • Low Profile Coaxial Tweeter Design
  • Discreet (Hidden) Tweeter Wire
  • 2-Year Warranty
Technologies
Element Ready™ | Motorcycle

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Learn more
CEA-2031 (speakers)

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Learn more
VAST Surround (speakers)

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Learn more
Specifications
CEA-2031
CEA-2013 Guidelines
Midrange Size
(Nominal Diameter)
6" x 9"
Frequency Response
56 Hz - 20 kHz
Speaker Type
2-Way
Power Handling
100 Watts RMS
Impedance
4-Ohms
Sensitivity
(dB @ 1W/1M)
89 dB
Mounting Hardware
No
Sensitivity
(dB @ 2.83V/1M)
92 dB
Midrange Mounting Depth
2.75" (70 mm)
Grille/Trim Ring Included
No
Included In The Box
(2) TMS69
Shipping Weight
3 Lbs. (1.36 Kg)
Compatibility
