RZR Stage 5: 1,000 Watt Stereo, Front and Rear Speaker, and Subwoofer Kit for Select Polaris® RZR® Models (Gen-2) RZR14-STAGE5
RZR Stage 5: 1,000 Watt Stereo, Front and Rear Speaker, and Subwoofer Kit for Select Polaris® RZR® Models (Gen-2) RZR14-STAGE5
If you want to take things to the next level then the RZR Stage 5 kit is for you. Featuring all the same hardware as the Stage 4 kit, we've upgraded the front and rear speakers and to our Punch PM series for even more output. We're including our Power small chassis amplifiers, ramping the power total up to a whopping 1,000 watts and the subwoofer is stepped up to our T1 Slim series 10 inch model. If you're ready to be the loudest and baddest RZR on the ride then you've found exactly what you need.
2014-2018 RZR-STAGE5 Installation
2019+ RZR-STAGE5 Installation
• This model replaced by RZR14-STG5 (Gen-3)
Estimated Installation Time: 3 HOURS

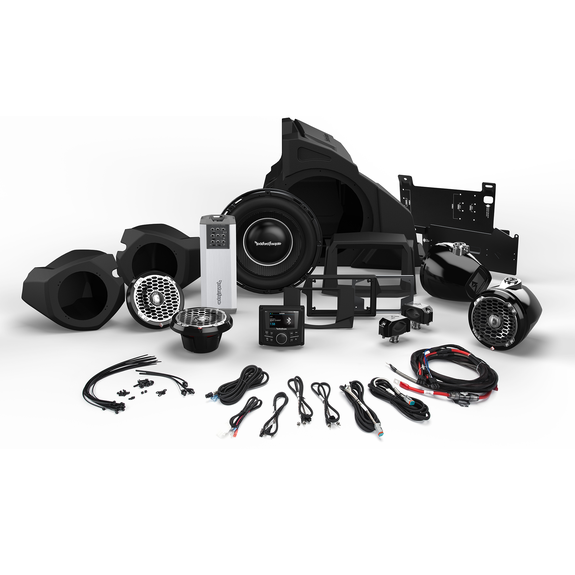

FEATURES AT A GLANCE
- No drilling or cutting required
- Plug-n-Play wiring harnesses for select RZR models
- Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
- Radio kit replaces factory lower (2014+) or factory upper (2019+) pocket
- Element Ready™ to withstand the harsh outdoor environment
- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
- RFRZ14-PMXDK: Installation Kit for Dash
- PM2652B: Punch Marine 6.5" Full Range Speakers - Black (Pair)
- RFRZ14-FSE: RZR 6.5” Front Speaker Enclosure (Pair)
- TM1000X5ad: Power Marine 1000 Watt Class-ad 5-Channel Amplifier
- RFRZ14-FWE: RZR 10” Front Ported Subwoofer Enclosure
- T1S2-10: Power 10" T1 Slim Single 2-Ohm Subwoofer
- RFRZ14-K4: RZR 4 AWG Wiring and Amp Kit and Mounting Plate
- PM2652W-MB: Punch Marine 6.5" Rear Speakers in Enclosure - Black (Pair)
- PM-CL2B: Punch Diecast Clamp for Rear Enclosure - Black (Pair)
- RFRZ14-RSW16: Rear Speaker Harness
- *Antenna not included
ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested
Water projected in powerful jets from any direction shall have no harmful effects.
Learn more
IPX6 Water Intrusion Rated
Water projected in powerful jets from any direction shall have no harmful effects.
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Learn more
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
| MODEL |  2014 |
2015 |
2016 |
2017 |
2018 |
  2019 |
2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 4 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S4 1000 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 4 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL | 2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 900 XC 1,2 | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 2 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — |
| RZR 4 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR RS1 | — | — | — | — | — | — | — | — |
| RZR S 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S 1000 1,2 | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S4 1000 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 Trails and Rocks 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL |  2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
 2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR PRO XP | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Ultimate | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Ultimate | — | — | — | — | — | — | —4 | —4 |
1
2014-2018 models compatible only with lower pocket assembly supplied with dash kit. Uses larger amp bracket supplied with amp mounting kit.
2
Kits featuring subwoofer not compatible with Polaris® heater option (located where sub enclosure should fit)
3
The 2 seat Turbo S shipped in early 2018, the 4 seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
4
The RZR PRO XP shipped in 2020 featuring a different chassis and body panels, therefore it is not compatible.
