RZR Stage 4: 400 Watt Stereo, Front and Rear Speaker, and Subwoofer Kit for Select Polaris® RZR® Models (Gen-2) RZR14-STAGE4
RZR Stage 4: 400 Watt Stereo, Front and Rear Speaker, and Subwoofer Kit for Select Polaris® RZR® Models (Gen-2) RZR14-STAGE4

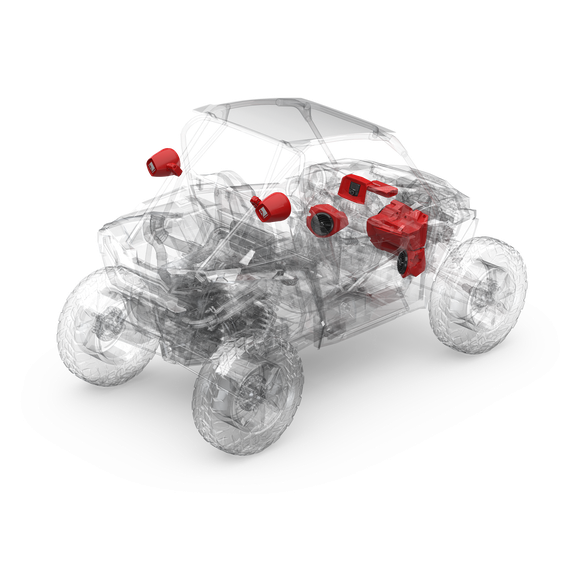

The Stage 4 kit is the complete package that combines the Stage 3 kit with our rear speaker option. Adding our RM1 series mini speaker enclosure and clamp system, this kit adds the last bit of sound that you need. Simply plug in the harness, mount the speakers and rock out. Whether hitting the dunes or the trails, you are sure to be the center of attention of any get-together.
2014-2018 RZR-STAGE4 Installation
2019+ RZR-STAGE4 Installation
• This model replaced by RZR14-STG4 (Gen-3)
Estimated Installation Time: 3 HOURS

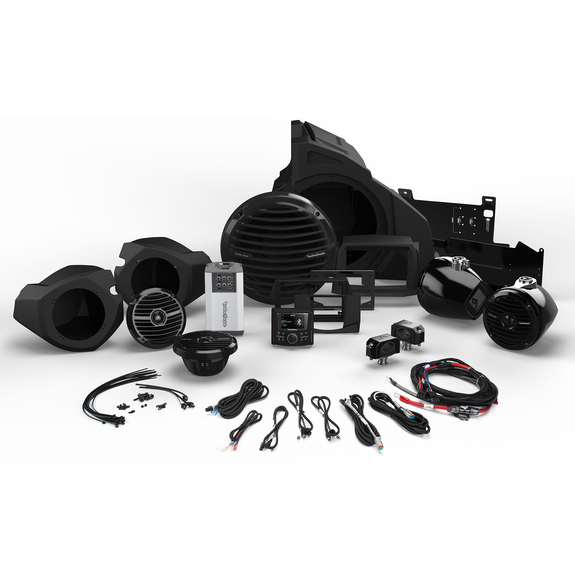

FEATURES AT A GLANCE
- No drilling or cutting required
- Plug-n-Play wiring harnesses for select RZR models
- Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
- Element Ready™ to withstand the harsh outdoor environment
- Radio kit replaces factory lower (2014+) or factory upper (2019+) pocket
- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
- RFRZ14-PMXDK: Installation Kit for Dash
- RFRZ14-FSE: RZR 6.5” Front Speaker Enclosure (Pair)
- RM1652B: Prime Marine 6.5" Full Range Speakers - Black (Pair)
- TM400X4ad: Power Marine 400 Watt Class-ad 4-Channel Amplifier
- RFRZ14-FWE: RZR 10” Front Ported Subwoofer Enclosure
- RM110D2B: Prime Marine 10" Dual 2-Ohm Subwoofer Black
- RFRZ14-K8: RZR 8 AWG Wiring and Amp Kit and Mounting Plate
- RM1652W-MB: Prime Marine 6.5" Rear Speakers in Enclosure - Black (Pair)
- PM-CL2B: Punch Diecast Clamp for Rear Enclosure - Black (Pair)
- RFRZ14-RSW16: Rear Speaker Harness
- *Antenna not included
ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested
Water projected in powerful jets from any direction shall have no harmful effects.
Learn more
IPX6 Water Intrusion Rated
Water projected in powerful jets from any direction shall have no harmful effects.
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Learn more
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
| MODEL |  2014 |
2015 |
2016 |
2017 |
2018 |
  2019 |
2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 4 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S4 1000 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 4 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL |  2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
 2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR PRO XP | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Ultimate | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Ultimate | — | — | — | — | — | — | —4 | —4 |
1
2014-2018 models compatible only with lower pocket assembly supplied with dash kit. Uses larger amp bracket supplied with amp mounting kit.
2
Kits featuring subwoofer not compatible with Polaris® heater option (located where sub enclosure should fit)
3
The 2 seat Turbo S shipped in early 2018, the 4 seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
4
The RZR PRO XP shipped in 2020 featuring a different chassis and body panels, therefore it is not compatible.
| MODEL | 2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 900 XC 1,2 | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 2 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — |
| RZR RS1 | — | — | — | — | — | — | — | — |
| RZR S 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S 1000 1,2 | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 Trails and Rocks 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
