RZR Stage 1: Stereo Kit for Select Polaris® RZR® Models (Gen-2) RZR14-STAGE1
RZR Stage 1: Stereo Kit for Select Polaris® RZR® Models (Gen-2) RZR14-STAGE1

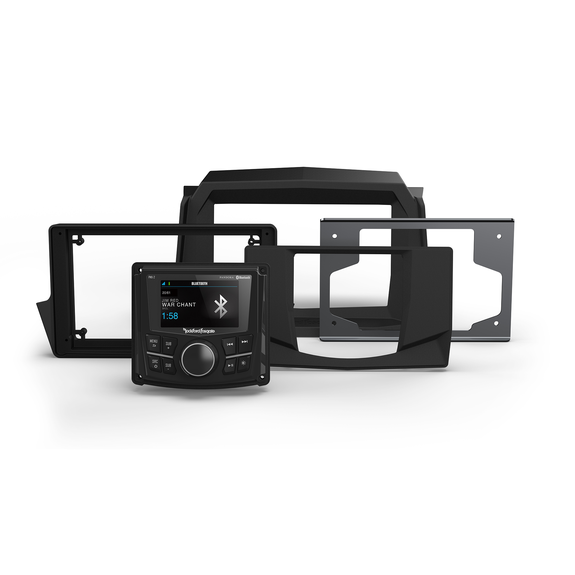

Our Stage 1 kit lets you easily add the PMX-2, PMX-3 or PMX-8 digital media receiver to your RZR. Coming prepackaged with all necessary hardware, this kit allows you to quickly upgrade your RZR with minimal time and tools required. Mounting hardware for the source unit and dash kit are provided. Mounting hardware not included for optional PMX-8BB hideaway black box (for use with PMX-8DH.)
2014-2018 RZR-STAGE1 Installation
2019+ RZR-STAGE5 Installation
• This model replaced by RZR14-STG1 (Gen-3)
Estimated Installation Time: 1/2 HOUR
FEATURES AT A GLANCE
- No drilling or cutting required
- Plug-n-Play wiring harnesses for select RZR models
- Element Ready™ to withstand the harsh outdoor environment
- RFRZ14-PMXDK: Installation Kit for Dash
- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
- Radio kit replaces factory lower (2014+) or factory upper (2019+) pocket
- *Antenna not included
ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested
Water projected in powerful jets from any direction shall have no harmful effects.
Learn more
IPX6 Water Intrusion Rated
Water projected in powerful jets from any direction shall have no harmful effects.
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Learn more
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
| MODEL |  2014 |
2015 |
2016 |
2017 |
2018 |
  2019 |
2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 4 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S4 1000 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 4 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL | 2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 900 XC 1,2 | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 2 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — |
| RZR RS1 | — | — | — | — | — | — | — | — |
| RZR S 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S 1000 1,2 | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 Trails and Rocks 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL |  2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
 2020 |
2021 |
|---|---|---|---|---|---|---|---|---|
| RZR PRO XP | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Ultimate | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Ultimate | — | — | — | — | — | — | —4 | —4 |
1
2014-2018 models compatible only with lower pocket assembly supplied with dash kit. Uses larger amp bracket supplied with amp mounting kit.
2
Kits featuring subwoofer not compatible with Polaris® heater option (located where sub enclosure should fit)
3
The 2 seat Turbo S shipped in early 2018, the 4 seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
4
The RZR PRO XP shipped in 2020 featuring a different chassis and body panels, therefore it is not compatible.
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
