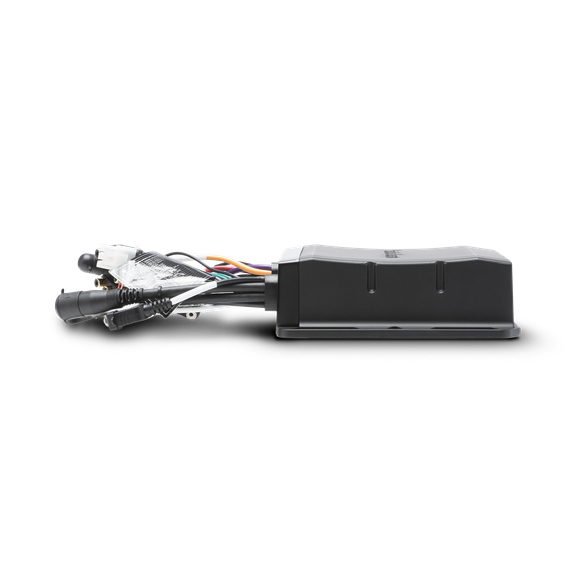

Side View of Media Receiver
Three Quarter Beauty Shot of Media Receiver
Three Quarter Beauty Shot Back View of Media Receiver
Back View of Media Receiver
Right Side View of Media Receiver
Three Quarter Beauty Shot of Products Included in Kit
Left Side View of Media Receiver
Front View of Media Receiver
Side View of Media Receiver
Three Quarter Beauty Shot of Media Receiver
Three Quarter Beauty Shot Back View of Media Receiver
Back View of Media Receiver
Right Side View of Media Receiver
Three Quarter Beauty Shot of Products Included in Kit
Left Side View of Media Receiver
Front View of Media Receiver
Side View of Media Receiver
Three Quarter Beauty Shot of Media Receiver
Three Quarter Beauty Shot Back View of Media Receiver
Back View of Media Receiver
Right Side View of Media Receiver
Three Quarter Beauty Shot of Products Included in Kit
Left Side View of Media Receiver

Punch Marine Hide-Away AM/FM/WP Multi-Zone Digital Media Receiver PMX-8BB

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller.  Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.

Read More
1 Review
Find Dealer
Overview Technologies Specifications Compatibility Support Accessories
Overview

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready.  Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)

FEATURES AT A GLANCE

  • Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
  • Bluetooth, A2DP only, AVRCP 1.4
  • Made for iPhone apple certified
  • Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
  • Simple secure pairing bluetooth profile for android & iOS
  • Display album art from connected iPhones on the radios display
  • 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
  • Folder browsing via BT connected iPhones
  • Internal power amplifier 4x50w 2 ohm stable
  • Selectable crossover slopes of 12dB or 24 dB for each independant zone
  • Selectable high pass and low pass crossover points for each independent zone
  • Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
  • Adjustable input gain for each source
  • Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
  • Integrated voltage gauge w/ low voltage alert
  • Wired remote ready (up to 3 remotes)
  • Rear aux-in (L/R)
  • External steering wheel remote control interface compatible
  • External trigger input to activate reverse camera mode
  • Wired illumination control
  • Optional CAN-BUS transceiver ready (PMX-CAN)
  • Rear USB with 1a charging (supports album art on USB connected iPhones)
  • Epoxy coated circuit board
  • Upgradeable Firmware and Bluetooth Software via USB
  • IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
  • CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
  • Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
  • *Antenna not included
  • 2-Year Warranty
Technologies
Element Ready™ | Source Units

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Learn more
Made for iPod/iPhone

This device supports the Apple "Made for iPod/iPhone" protocol.

Learn more
Made for Android

This device supports the Google "Made for Android" protocol.

Learn more
USB Playback

This source unit supports playback from a USB device.

Learn more
Built In Bluetooth®

Built In Bluetooth®

Learn more
CANbus

CANbus allows communication with other devices.

Learn more
Pandora®

Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Learn more
SiriusXM-Ready®

This radio is ready to accept SiriusXM® programming.

Learn more
FLAC

The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that ...

Learn more
Specifications
Display Size
N/A
Device Type
Digital-Media Black Box
Frequency Response
20 Hz - 20 kHz
GENERAL
N/A
Operating Voltage
10.5V - 16V
Remote Capacity
(see Compatibility Chart)
Dimensions (HxWxD)
H4.25" x W8.3" x D2.2"
(108mm x 211mm x 56mm)
Fuse Rating
15A
SPEAKER OUTPUTS
YES
Power Output
CEA-2006 Guidelines CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
≤1.0% THD+N
Speaker Impedance
2-Ohms
FEATURES
N/A
Clock
(Yes/No)
No
Speaker Outputs
(Yes/No)
Yes
Bluetooth®
(Yes/No)
Yes
3.0+EDR, A2DP 1.3
SiriusXM-Ready®
(Yes/No)
Yes
Requires SXV300
Multi-Zone/Multi-Source
(Yes/No)
Yes
Steering Wheel Control Ready
(Yes/No)
Yes
Pandora® Internet Radio
(Yes/No)
Yes
Apple®/Android™ Compatible
(Yes/No)
Yes
AUX Input
(Yes/No)
Yes
USB Charging
(Yes/No)
Yes
TUNER
N/A
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
FM TUNER
Frequency Range
87.5 MHz - 107.9 MHz
AM TUNER
Frequency Range
530 kHz - 1710 kHz
WB TUNER
Frequency Range
162.40 - 162.55
(US & Canada)
MEDIA PLAYER
Audio Format Compatibility
MP3
WMA
FLAC
USB Version
2.0
MEDIA PLAYER
N/A
USB Capacity
32Gb max
999 Folders max
999 Songs max
USB Output Current
1A
Made for iPod Models
iPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
Android Compatibility
Bluetooth® Only
RCA OUTPUTS
N/A
Made for iPhone Models
iPhone XS (pending)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
RCA Output Voltage
4V
RCA Output Impedance
500Ω
Compatibility
MODEL DESCRIPTION
PMX-8DH 1,2 Punch Marine Full Function Wired 5" TFT Display Head
PMX-1R 1 Punch Marine Full Function Wired Remote 2.7" Display
PMX-0R 1 Punch Marine Wired Remote Control

1 The PMX-8BB is compatible with (1) PMX-8DH and combination of (3) PMX-1R and/or PMX-0R remotes, 100 ft Total Wired Distance

2 25-ft. max cable to PMX-8BB. When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH is supplied with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.

Support

Knowledge Base Articles


Show all Knowledge Base topics

Ask Our Experts

Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.


Return Authorization Process



Diagnose First

Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our Knowledge Base for troubleshooting assistance.



Contact Customer Support

Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:

  • First and Last Name with complete Shipping Address
  • Product Name (T0D415)
  • Serial Number (12 or 13 digit number)
  • Failure Diagnosis (no output, no power LED, etc.)
  • Scanned copy of Original Receipt emailed to [email protected] (dealer name, purchase date, and item purchased must be legible)
  • Credit/Debit Card (if paying for out-of-warranty claims)
  • No money orders or checks.


Shipping Instructions

When shipping your product, your package MUST have the following information:

  • RA# Printed Outside of Box (as large as possible)
  • Copy of Original Receipt


Shipping Address

Ship your product (UPS or FedEx preferred) to the following:


Rockford/ AJR International
300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
Accessories
Front View of Display Head

Punch Marine Full Function Wired 5" TFT Display Head

PMX-8DH
read more...
Front View of Remote Display

Punch Marine Full Function Wired Remote 2.7" Display

PMX-1R
read more...
Three Quarter Beauty Shot of Display Interface Module

CANbus Multi-Function Display Interface Module

PMX-CAN
read more...
Front View of Amplified Antenna

AM/FM/WB Amplified 12V Antenna

PMX-ANT
read more...
Extension Cable USB Input and Output View

33 ft. USB Extension Cable

PMX-USBEXT
read more...

Reviews

The Best!

This radio is incredible, I have it connected to two PMX 1R remote and a Ray Marine Axiom Nav. It controls my whole 27’ Sea Ray flawlessly. My favorite part is the album art showing up on each conrol screen even with just the use of Bluetooth. Great buy.
