1998-2013 Harley-Davidson® Street Glide® Source Unit, 4-Speaker & Amp Kit (Gen-2) HD9813SG-STAGE3

Front View of Stage 3 Kit

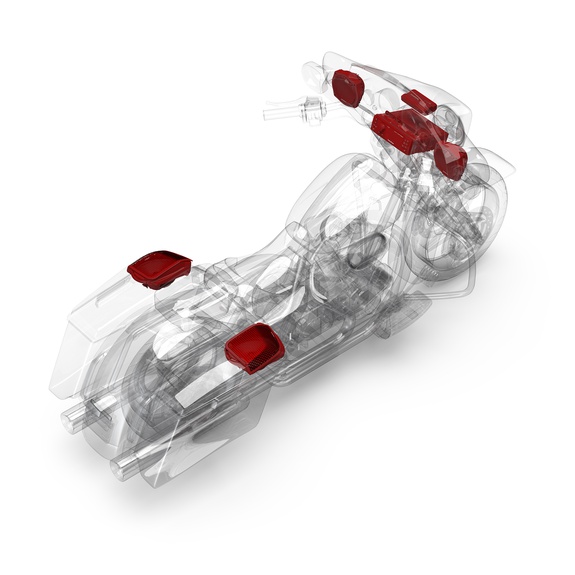

Stage 3 Kit Installation View on Street Glide
Front View of Digital Media Receiver
Front View of Amplifier

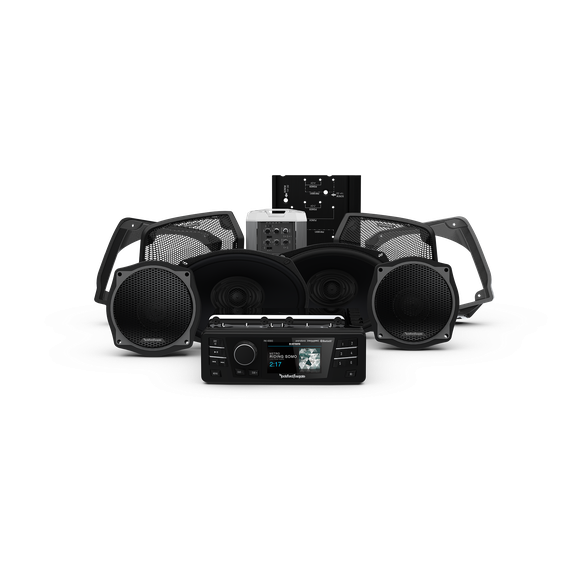

Three Quarter Beauty Shot of Products Included in Kit
Three Quarter Beauty Shot of Products Included in Kit

1998-2013 Harley-Davidson® Street Glide® Source Unit, 4-Speaker & Amp Kit (Gen-2) HD9813SG-STAGE3

Add a high-performance 4-speaker, 400-watt audio system to your motorcycle, purpose built for select 1998-2013 Harley-Davidson® Electra Glide® and Street Glide® models. System includes a replacement digital media receiver, two 6.5” fairing speakers, two 6x9” saddlebag speakers, a 400 watt 4-channel amplifier, and complete installation kit. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

1998-2013 H-D Street Glide Stage-3 Installation

Read More
0 Reviews
Discontinued
Overview

This 4-speaker, 400-watt high performance audio system is designed for select 1998-2013 Harley-Davidson® motorcycles (see compatibility chart.) The replacement digital media receiver provides total control over your music by featuring Bluetooth® wireless streaming, USB and AUX inputs, along with Pandora® and an AM/FM digital tuner that is SiriusXM® Ready. The included 6.5” fairing and 6x9” baglid speakers are frequency-response tuned to overcome wind, exhaust, and road noise up to 75 MPH. The 400-watt amplifier features 2-channels for the fairing speakers and 2 channels for the baglid speakers. The amplifier installation kit includes an external heat-sink, mounting brackets, speaker and power wiring with all necessary hardware. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

FEATURES AT A GLANCE

  • No drilling or cutting required
  • Radio integration supports front/rear fader control
  • Direct connect wiring harnesses for Harley-Davidson® models
  • Kits bolt to factory attachment points
  • PMX-HD9813 Digital Media Receiver replacement for Harley-Davidson® 1998-2013 models
  • TM400X4ad Power Marine 400 Watt Class-ad 4-Channel Amplifier
  • TMS6SG: 6.5" 2-way Element Ready™ speaker with phase-aligned 25 mm tweeter and Street Glide® grille
  • RFK-HD9813 1998-2013 Harley-Davidson® Road Glide® & Street Glide® Amplifier Wiring Kit
  • TMS69BL9813: 6x9” Element Ready™ speaker retrofit kit for factory H-D® hardshell bags (non fiberglass models)
  • 2-Year Warranty
Technologies
CEA-2006 (amplifier)

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's ...

Learn more
CEA-2031 (speakers)

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Learn more
Element Ready™ | Motorcycle

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Learn more
Specifications
Speaker Qty
4
Amplifier Type
External
Total Power
400 Watts
Grille/Trim Ring Included
Yes
Mounting Hardware
Yes
Included In The Box
(1) PMX-HD9813 Source Unit
(2) TMS6SG Speakers
(2) 2006-2013 Street Glide Grilles
(1) TM400X4ad Amplifier
(1) RFKHD9813 Amp Mounting Kit
(1) Wiring Harness Kit
(1) Hardware Pack
Shipping Weight
29 Lbs (13.15 Kg)
Compatibility
YEAR MAKE MODEL CHASSIS FAIRING
2006–2013 Harley-Davidson® Street Glide® 1,2,3,4,5 FLHX Bat Wing
1998–2013 Harley-Davidson® Electra Glide® Standard 1,2,3,4,5 FLHTI Bat Wing

1 Radio not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
2 Saddlebag Kit compatible only with ABS plastic lids. Not compatible with Fiberglass lids.
3 Saddlebag Kit not compatible with H-D® Power Lock Kit
4 Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
5 Tour-Pak® speakers not 100% plug-n-play compatible (contact support on work-around)

Support

Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
