1998-2013 Road King® 2-Speaker & Amp Kit HD9813RK-STAGE2

Front View of Stage 2 Kit

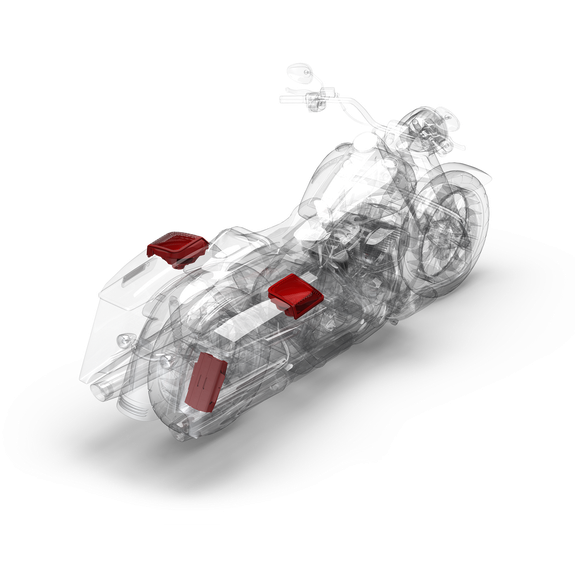

Stage 2 Kit Installation View on Road King
Front View of Amplifier

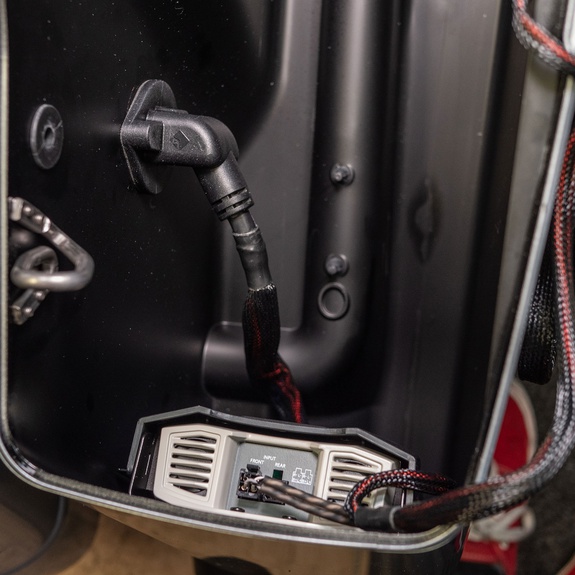

Detail View of Connector Interface and Amplifier
Detailed View of Amplifier Carrier with Included TM400X4ad Amplifier

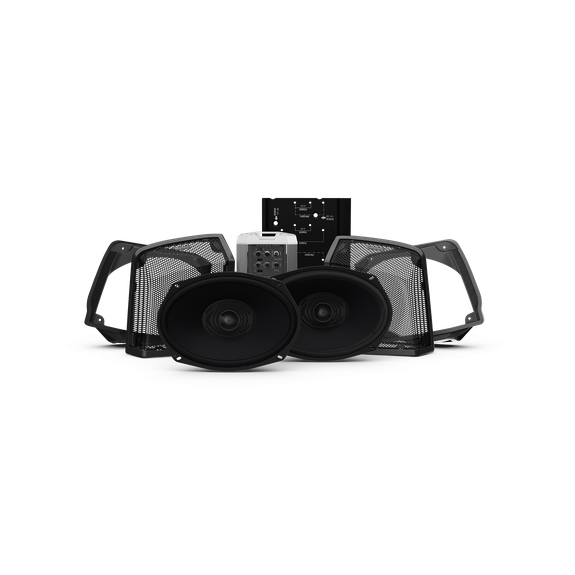

Three Quarter Beauty Shot of Products Included in Kit
Three Quarter Beauty Shot of Products Included in Kit
Front View of Universal Bluetooth to RCA Adaptor

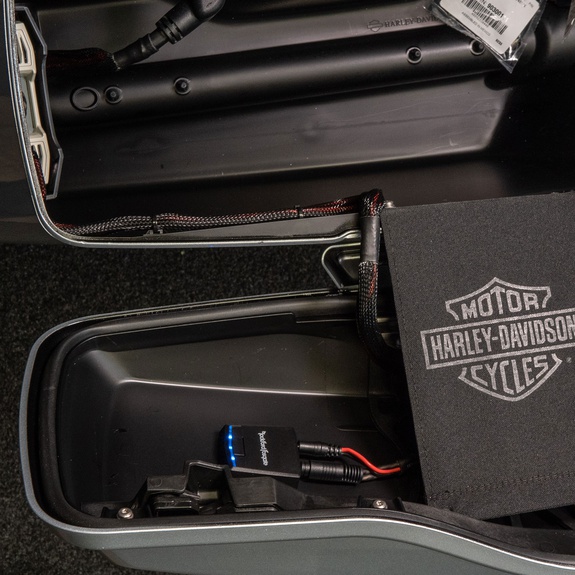

Detail View of Amplifier and Bluetooth Module
Detail View of PMX-BTUR Remote Control for iOS and Android

1998-2013 Road King® 2-Speaker & Amp Kit HD9813RK-STAGE2

The HD9813RK-STAGE2 is a high-performance audio kit for select 1998-2013 Road King motorcycles designed to deliver an exceptional sound experience while retaining as much interior bag space as possible. Kit includes a 6”x9” saddle bag speaker retrofit kit, 400-watt amplifier, Bluetooth® receiver, and a plug-n-play wiring harness.  Prewired expansion input for use with lowers (see specifications table for required connector.)  NOTE: The handlebar remote control is an optional accessory available under the Accessories tab. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

1998-2013 H-D Road King Stage-2 Installation

Read More
0 Reviews
Overview

The Road King kits are designed to deliver an exceptional sound experience while retaining as much interior bag space as possible. The 6x9 inch bag lid speakers install seamlessly into the top of the factory saddlebags using the included cutting template, waterproof bag lid mounts, and speaker grilles. The speakers are connected to a 400-watt amplifier that’s mounted to a custom plate inside the rear of the bag. The system is tied together via a plug-and-play wiring harness and included Bluetooth® receiver. The rider simply connects a smartphone via Bluetooth® and you’re ready to ride. The entire system is Element Ready® to withstand rain, dirt, and dust in the riding environment. The speakers are also highly efficient and tuned to overcome wind, exhaust and road noise. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

FEATURES AT A GLANCE

  • Plug and Play design for easy installation
  • Designed for use with 1998-2013 Factory Harley-Davidson® Hardshell Bags
  • TM400X4ad: Element Ready® Power Series 400-watt 4 channel amplifier
  • Easy One Button Pairing
  • TMS69BL9813: 6x9” Element Ready™ speaker retrofit kit for factory H-D® hardshell bags (non fiberglass models)
  • RFK-HDRK Amp install kit with brackets, wiring and RFBTRCA Bluetooth® receiver
  • Compatible with Android 5.0 and Above, iOS 8.0 and Above
  • FCC, IC, RCM, CE Certified
  • Prewired front lower speaker expansion harness (terminates under seat)
  • 2-Year Warranty
Technologies
CEA-2006 (amplifier)

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's ...

Learn more
CEA-2031 (speakers)

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Learn more
Element Ready™ | Motorcycle

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Learn more
Specifications
Speaker Qty
2
Amplifier Type
External
Total Power
400 Watts
Grille/Trim Ring Included
Yes
Mounting Hardware
Yes
Expansion Connector Required
(1) DEUTSCH™/Amphenol #DT06-4S
Included In The Box
(2) TMS69 Speakers
(2) 1998-2013 Road King Grilles
(1) TM400X4ad Amplifier
(1) RFK-HDRK Amp Mounting Kit
(1) RFBTRCA
(1) Wiring Harness Kit
(1) Hardware Pack
Shipping Weight
18.5 Lbs (8.39 Kg)
Compatibility
YEAR MAKE MODEL CHASSIS FAIRING
2013 Harley-Davidson® CVO Road King® 2 FLHRSE5
1998—2013 Harley-Davidson® Road King® 2 FLHR
2002—2003 Harley-Davidson® Screaming’ Eagle® Road King® 1, 2 FLHRSEI

1 Must be equipped with inner-opening plastic saddlebags. Not compatible with leather equipped models.
2 Saddlebag kit compatible only with ABS plastic lids. Not compatible with Fiberglass lids.
