8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module DSR1
8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module DSR1
Co-developed with iDatalink Maestro, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using the proprietary Rockford Fosgate PerfectTune™ software.
Download PerfectTune™ to control the DSR1:
The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit.
After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.
FEATURES AT A GLANCE
- Digital Signal Processing with Integrated Maestro CAN Interface
- Four Channel Balanced Differential RCA Inputs
- Four Channel High Level Inputs with Signal Sense Turn On
- 18 Pin Analog Input Harness
- 16 Pin Analog Output Harness
- Micro USB Setup/Update Port
- Optional PLC2 Level Controller with Assignable Functions
- Designed for use with Select Maestro Vehicle T-Harnesses
- Auxiliary RCA and SPDIF Coaxial Inputs
- 245 Bands of Equalization for Aftermarket Tuning
- Adjustable crossovers with selectable slope
- Up 10msec of delay on each channel for Time Alignment
- Bluetooth 4.0 Connectivity for convenient setup
- Interactive Tuning Interface Controlled via Android/ iOS APP
- CE and FCC Compliant
- 1 Year Warranty
Maestro for DSR1
An overview of the Maestro module inside DSR1 that allows you to interface with factory installed systems equipped with a factory amplifier.
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 ...
Learn more
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Bluetooth connectivity allows connection to a mobile device for tuning (non audio streaming.)
Learn more
Tuning Connectivity via Bluetooth
Bluetooth connectivity allows connection to a mobile device for tuning (non audio streaming.)
The iDatalink Maestro technology is a flashable module that allows vehicle specific firmware to be downloaded ...
Learn more
iDatalink Maestro
The iDatalink Maestro technology is a flashable module that allows vehicle specific firmware to be downloaded to the unit, enabling integration into a factory installed system without the loss of factory equipped controls and features.
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and ...
Learn more
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
4 High-Level Inputs w/ Signal Sense
2 AUX RCA Inputs
SPDIF Coaxial Input
High Level: up to 12.5V
High Level Turn-On: 4V - 16V
AUX: up to 2V
AUX: >100 dBA (A-weighted)
Precision: 32-BIt
Accumulators: 72-bit
Dynamic Range: 108 dB
THD+N: -98 dB
Low-Pass
Band-Pass
All-Pass
Fixed Linkwitz-Riley
Dynamic Range: 105 dB
THD+N: -98 dB
6/12/18/24/30/36/48 dB/Octave
Frequency Bands: 31 per channel
(iPhone, iPad, iPod touch)
ANDROID: Oreo 8.0 or later
(optimized for 5-inch screen or larger)
(32 mm x 102.5 mm x 130 mm)
| Harness | Vehicle Make(s) | Vehicle Coverage | Description |
|---|---|---|---|
| HRN-AR-FO2 | Ford | iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Ford vehicles with 8-inch "My Ford Touch" radio and Sony Amplified system 2011 and up. |
| HRN-AR-FO3 | Ford | iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Ford Mustang trims 2015 and up. |
| HRN-AR-CH2 | Chrysler Dodge Jeep RAM Volkswagen |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Chrysler, Dodge, Fiat, Jeep, Ram and Volkswagen vehicles 2007 and up. |
| HRN-AR-CH3 | Chrysler Dodge Fiat Jeep |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select select Chrysler, Dodge, Fiat and Jeep 2012 and up. |
| HRN-AR-CH4 | Chrysler Dodge Jeep Maserati RAM |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Chrysler, Dodge, Jeep, Maserati and Ram vehicles 2016 and up. |

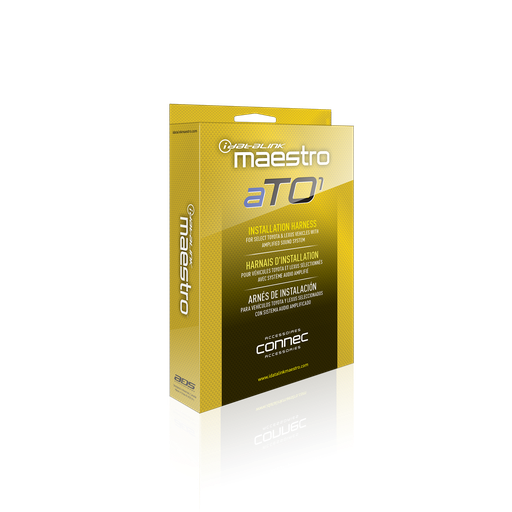

| HRN-AR-TO1 | Lexus Toyota |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Lexus and Toyota vehicles 2008 and up. |
| HRN-AR-TO2 | Lexus Subaru Toyota |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Toyota, Lexus and Subaru vehicles 2012 and up. |
| HRN-AR-TO3 | Subaru Toyota |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Toyota and Subaru vehicles 2005 and up. |
| Harness | Vehicle Make(s) | Vehicle Coverage | Description |
|---|---|---|---|
| HRN-DSP-CH3 | Chrysler Dodge Fiat Jeep RAM |
iDataLink Vehicle Coverage | DSP installation T-harness for select Chrysler, Dodge, Fiat, Jeep and Ram vehicles 2013 and up without factory amplifiers. |
| HRN-DSP-NI1 | Chevrolet infiniti Nissan Subaru |
iDataLink Vehicle Coverage | DSP installation T-harness for select Inifiniti, Nissan and Subaru vehicles without factory amplifiers. |
| HRN-DSP-TO1 | Scion Subaru Toyota |
iDataLink Vehicle Coverage | T-Harness for select Scion, Subaru and Toyota vehicles without factory amplifiers. |
| Harness | Vehicle Make(s) | Vehicle Coverage | Description |
|---|---|---|---|
| HRN-AR-EXT2 | Chrysler Dodge Ford Jeep Lexus Maserati RAM Subaru Toyota |
iDataLink Vehicle Coverage | 2-meter amplifier relocation extension harness. |
| HRN-AR-EXT4 | Chrysler Dodge Ford Jeep Lexus Maserati RAM Subaru Toyota |
iDataLink Vehicle Coverage | 4-meter amplifier relocation extension harness. |
